These Carter Brothers Passenger cars kits were designed by David Fletcher for his Master Class on MyLargeScale.com.
Bronson-Tate was one of the original cutters for Davids kits. It is with his permission that we are able to offer these kits to the general public.
The Carter Brothers began building passenger cars in the early 1870's. There were design and detail errors in these early cars that Carters would later rectify in designs that followed,but despite that, the visual style of the Carters car remains reasonably consistent.
Carter cars would see upgrades over the years, with the basic design. Some would remain in service through to the 1920s and 30s. The design moved from the smooth sided 'board & batten' to the more modern planked sided cars. The car bodies are 36' to the body ends, and is a little over 40' to the end beams. Around the 1880 time period, Carter switched to using taller cast iron queen posts on the needle beams along with boxed in steps.
It is these later cars that our kits are designed from.
Our kits are built out of laser cut aircraft grade plywood, basswood strip wood, and laser cut styrene. The kits have a fully framed undercarriage and include all the necessary white metal castings, steel and brass rods and Hartland trucks. The interior features include door and window trim, operating doors and laser cut styrene bench seats.

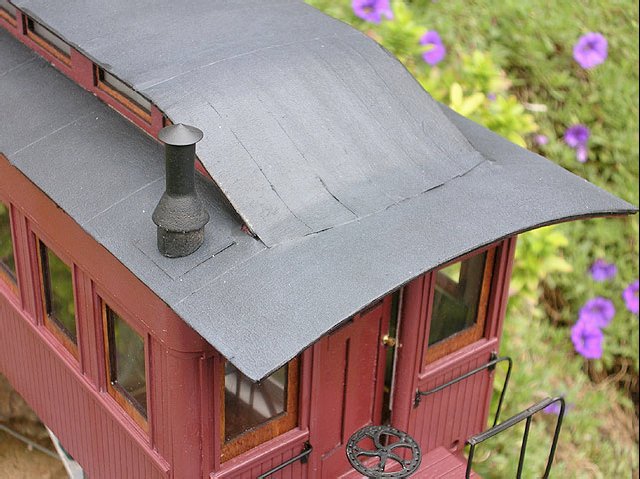

The Duck Bill roof is a David Fletcher design and is completely built out of laser cut plywood. It is very simple and ingenious in its design and assembly. Even the most novice builder can achieve a spectacular looking Duck Bill roof.
The builder will need to provide their choice of wheel sets, couplers and decals.
The kits can be completed in a few evenings.

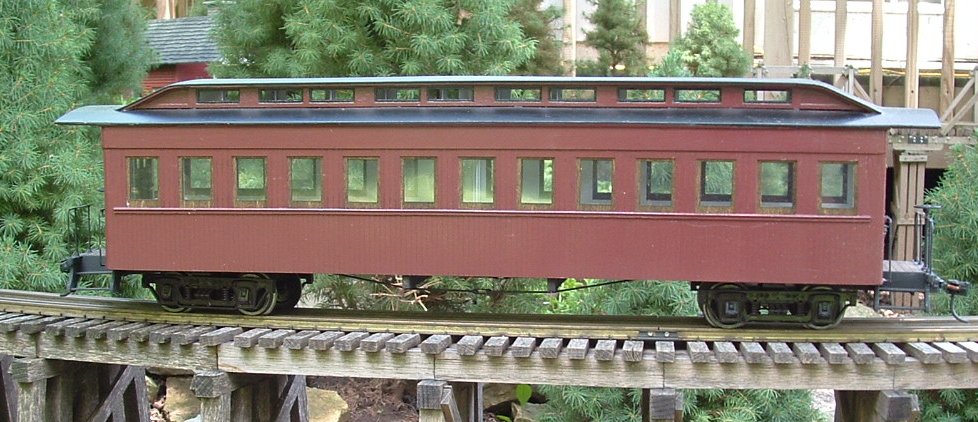

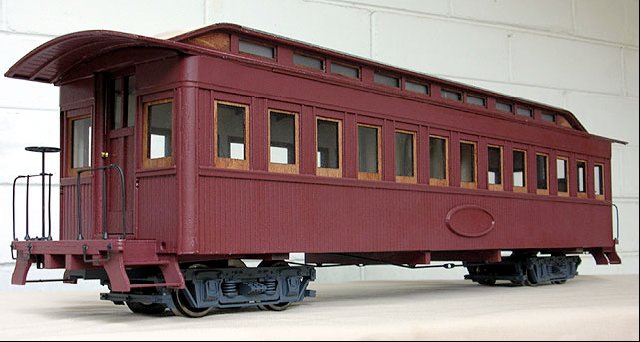

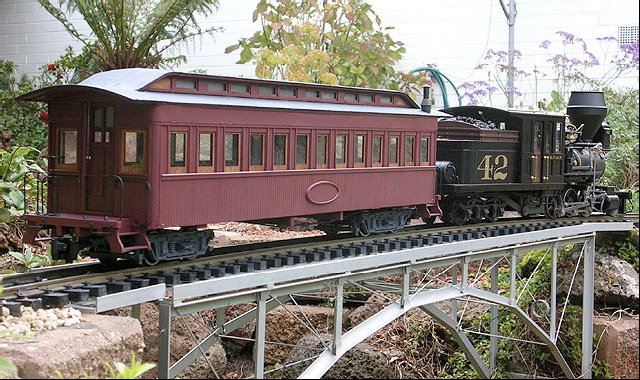

| 1880 Carter Bro's Coach |
|
 |
 |
David Fletcher |
 David Fletcher |
 David Fletcher |
 David Fletcher |

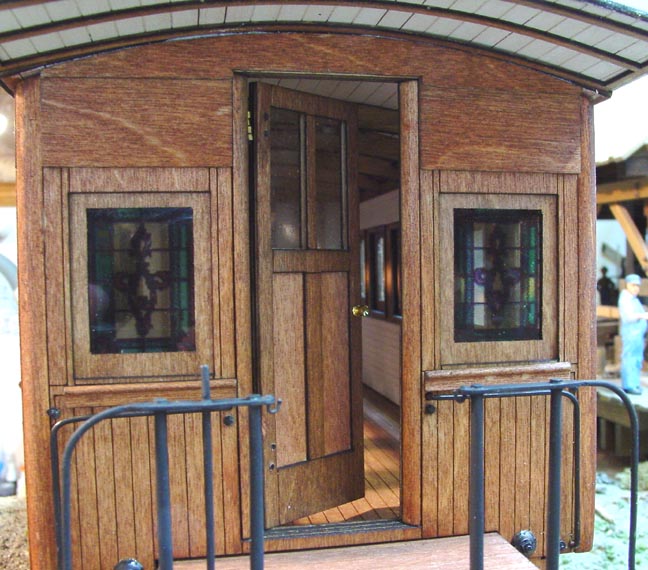

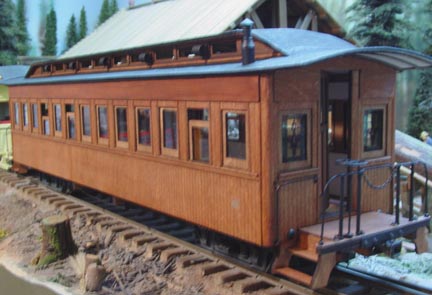

 Rich Schiffman
(Note the stain Glass Windows) |
 Rich Schiffman |
|

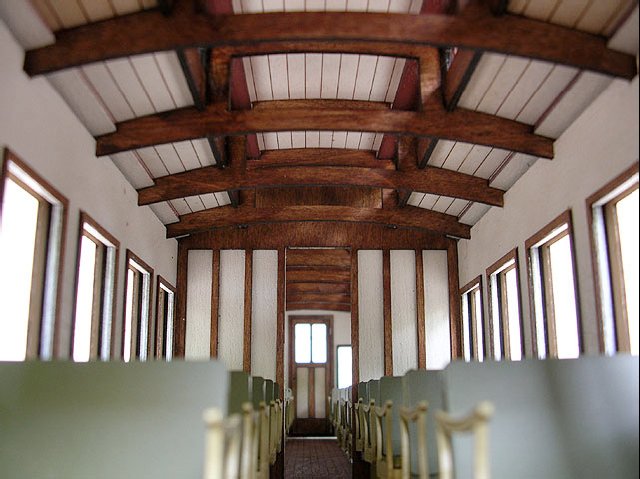

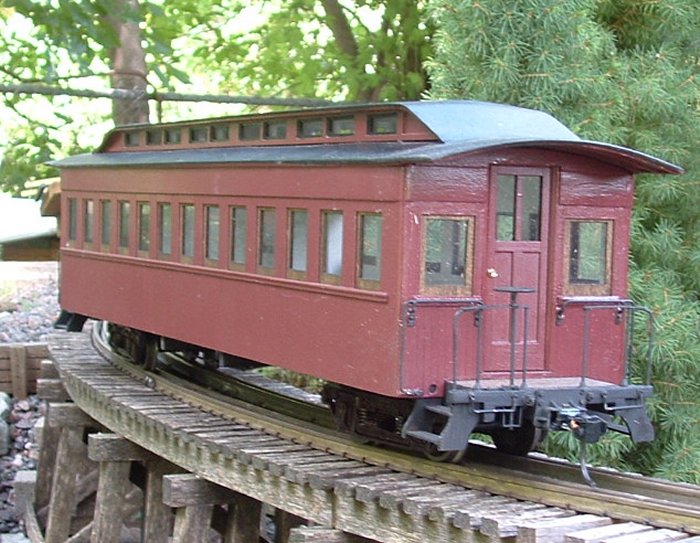

Our coach kit represents one of the Carter Brothers standard post 1880's planked sided, 13 window coach. The walls and roof are constructed from several layers of laser cut plywood. Doors are made to operate and the windows have both inner and outer trim. The frame constructed from individual interlocking beams and cross members laser cut from solid wood. It is designed with the taller queen posts and boxed in steps along with the later model two post cast end rails. Also included are 25 laser cut styrene seat assemblies, additional brake details for the Hartland trucks, all the needed glazings for the doors and windows, door hinges and knobs and all necessary end platform castings. The builder will need to supply their own choice of wheels, couplers and road name decals. BASIC DIMENSIONS:
Length - 24.25"
Width - 5.125"
Height - 6.75." $245.00
Kit# MLC-01 CLICK ON
IMAGES FOR
LARGER PICTURE |

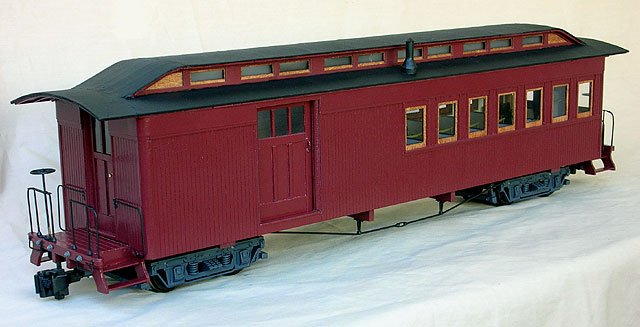

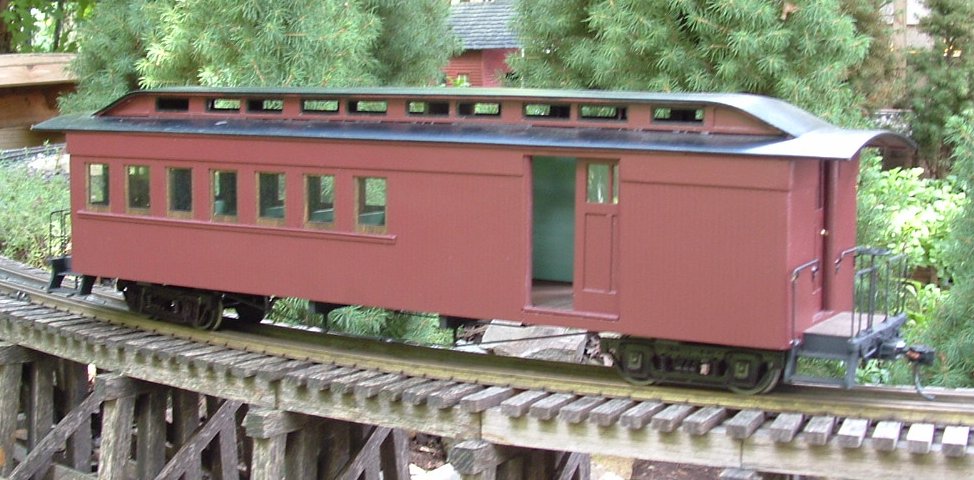

| 1880 Carter Bro's Combine/Caboose |
|
 |
 |

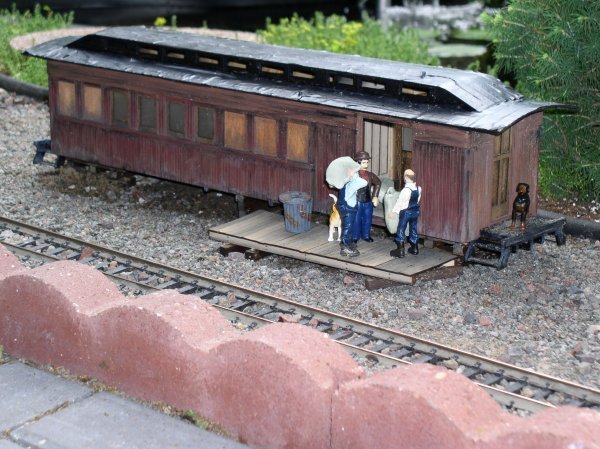

"Proof of Concept" turned into a Depot. |

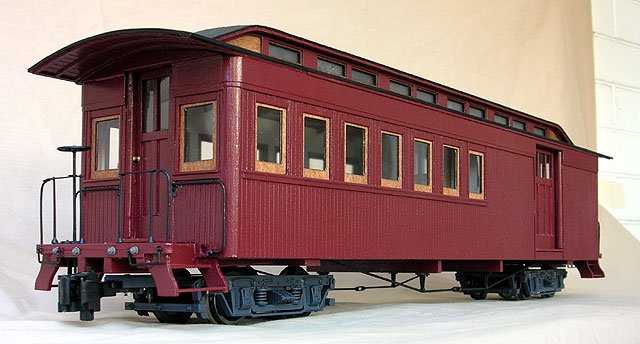

David Fletcher |
 David Fletcher |

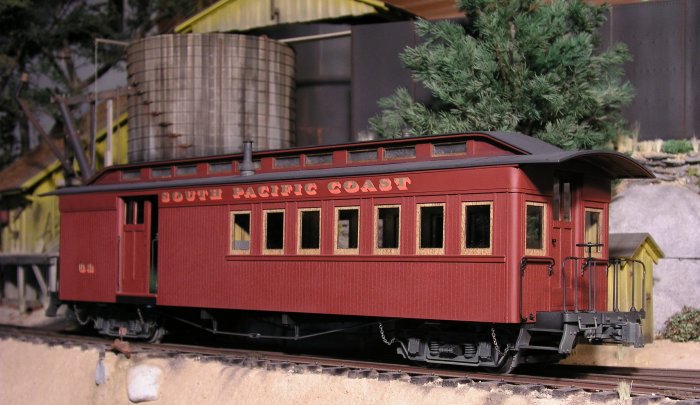

 Bob Poli |
 Bob Poli |
|

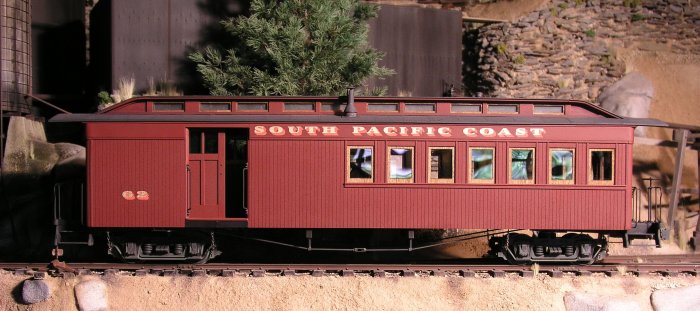

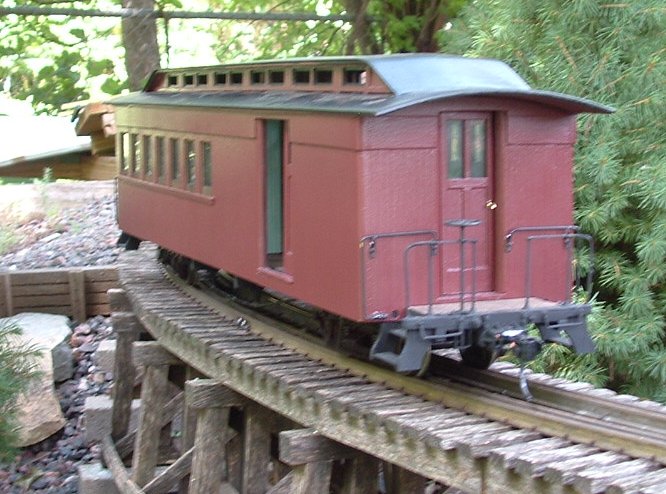

The Combine/Caboose version is based on the SPC 'Caboose' version, which is a standard combine but with the Baggage Door moved to a central position in the Baggage area and has seven windows instead of the customary nine. The walls and roof are constructed from several layers of laser cut plywood. Doors are made to operate and the windows have both inner and outer trim. The frame constructed from individual interlocking beams and cross members laser cut from solid wood. It is designed with the taller queen posts and boxed in steps along with the later model two post cast end rails. Also included are 13 laser cut styrene seat assemblies, additional brake details for the Hartland trucks, all the needed glazings for the doors and windows, door hinges and knobs and all necessary end platform castings. This kit also includes the cargo door handles and grab irons. The builder will need to supply their own choice of wheels, couplers and road name decals. BASIC DIMENSIONS:
Length - 24.25"
Width - 5.125"
Height - 6.75." $225.00
Kit# MLC-02 CLICK ON
IMAGES FOR
LARGER PICTURE |

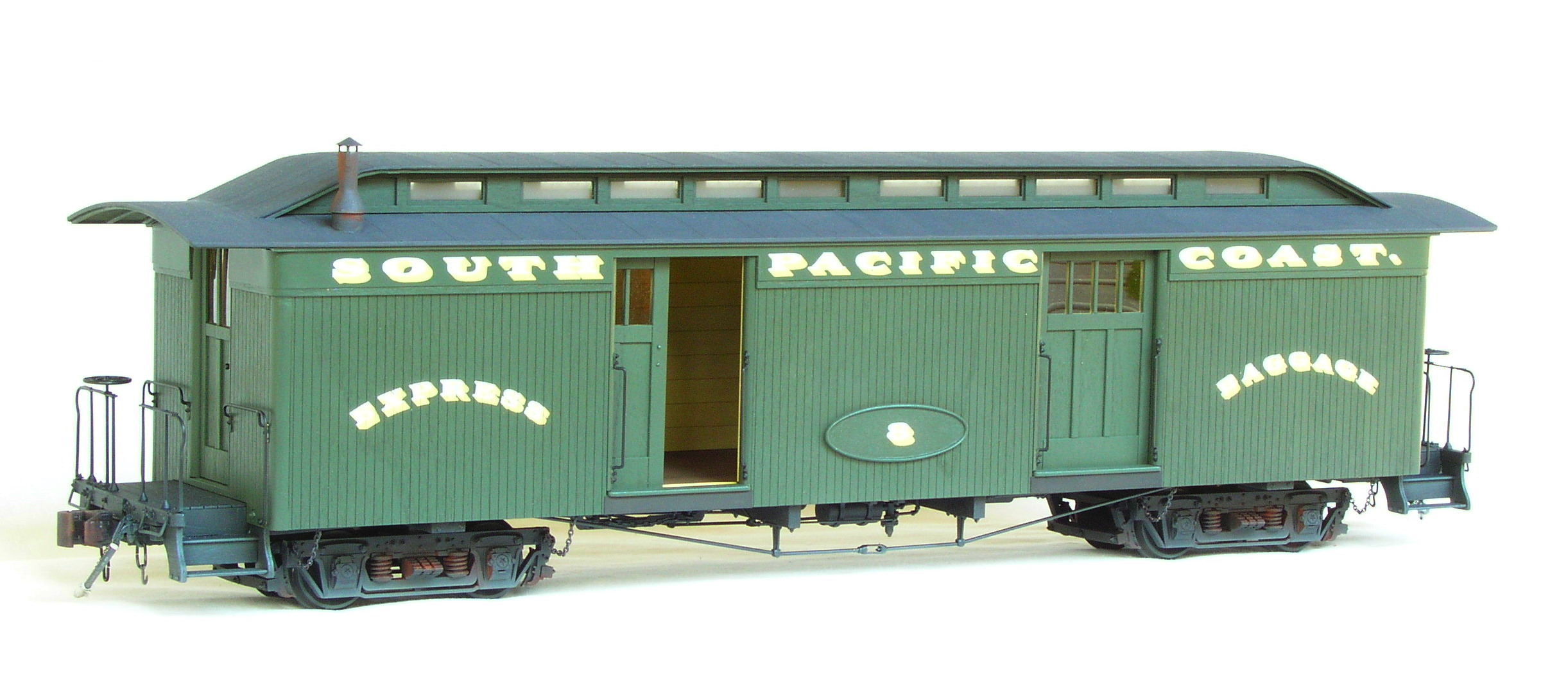

| 1880 Carter Bro's Baggage Car |
|
 |
 |

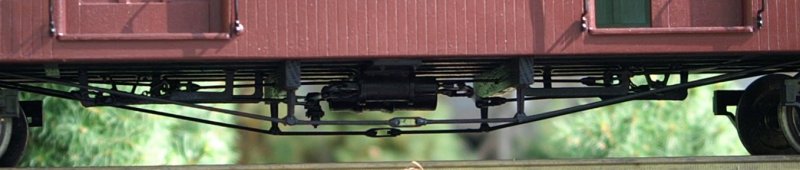

Brake Detail |

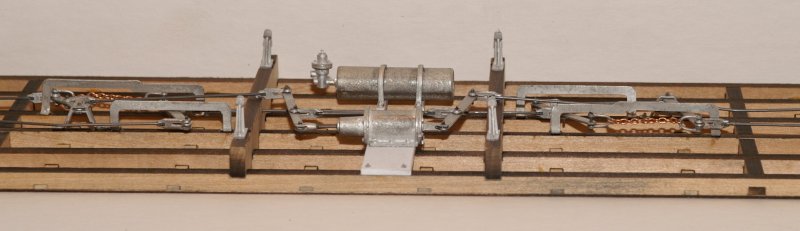

Unpainted Brake Detail |

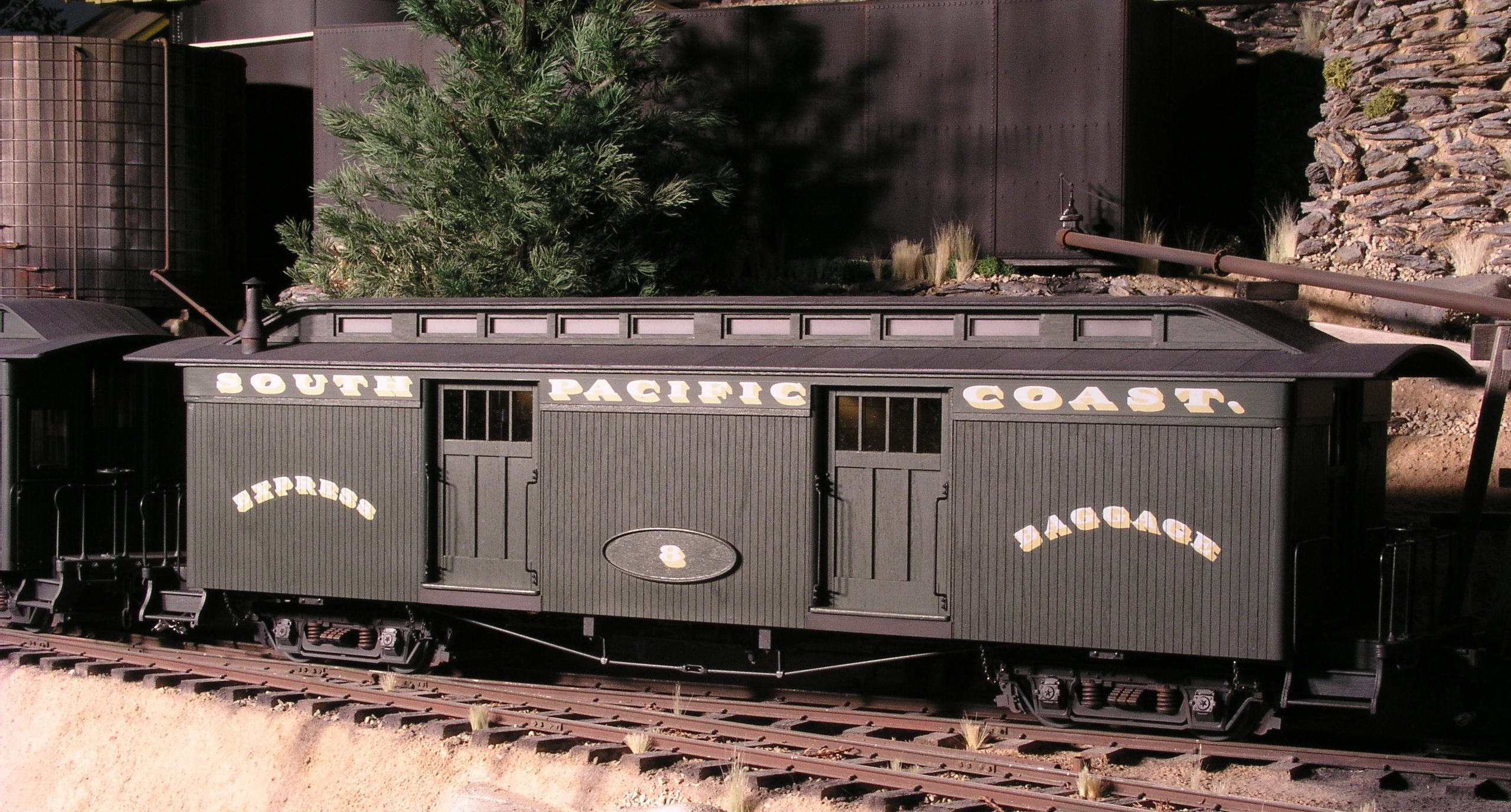

Bob Poli |
Bob Poli |
|

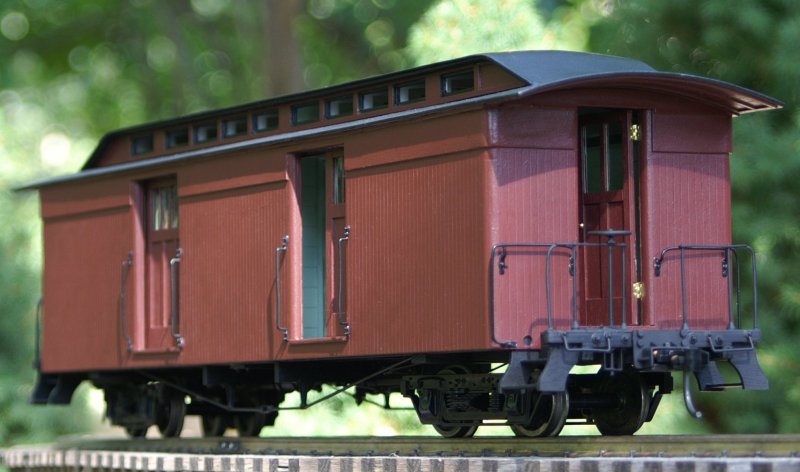

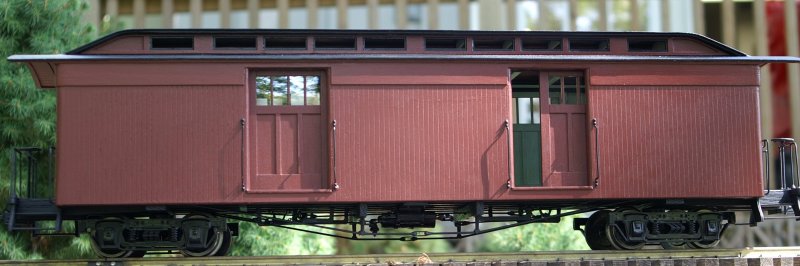

We are pleased to announce that the baggage car, a complement to the coach and combine/caboose, is now in production. This is the first Carter passenger that we are offering with detailed Westinghouse Air Brakes mounted to the undercarriage. The walls and roof are constructed from several layers of laser cut plywood. Cargo and passenger doors are operational. The frame is the same as on the other kits only 1' shorter. Also included are additional brake details for the Hartland trucks, all the needed glazings for the doors and clerestory windows, door hinges and knobs and all necessary end platform castings. This kit also includes the cargo door handles and grab irons. The builder will need to supply their own choice of wheels, couplers and road name decals. BASIC DIMENSIONS:
Length - 23.65"
Width - 5.125"
Height - 6.75." $225.00
Kit# MLC-03 CLICK ON
IMAGES FOR
LARGER PICTURE |
